Mica Tube
Mica Tube
- Product ID：Mica Tube
- QQ：2371515083
- Phone: +86 135 5410 7427
- Tel: +86 027 6527 9286
- Email: marketing@blcd.cc
- Time: 2021-04-26 20:48
- Feedback
Introduction

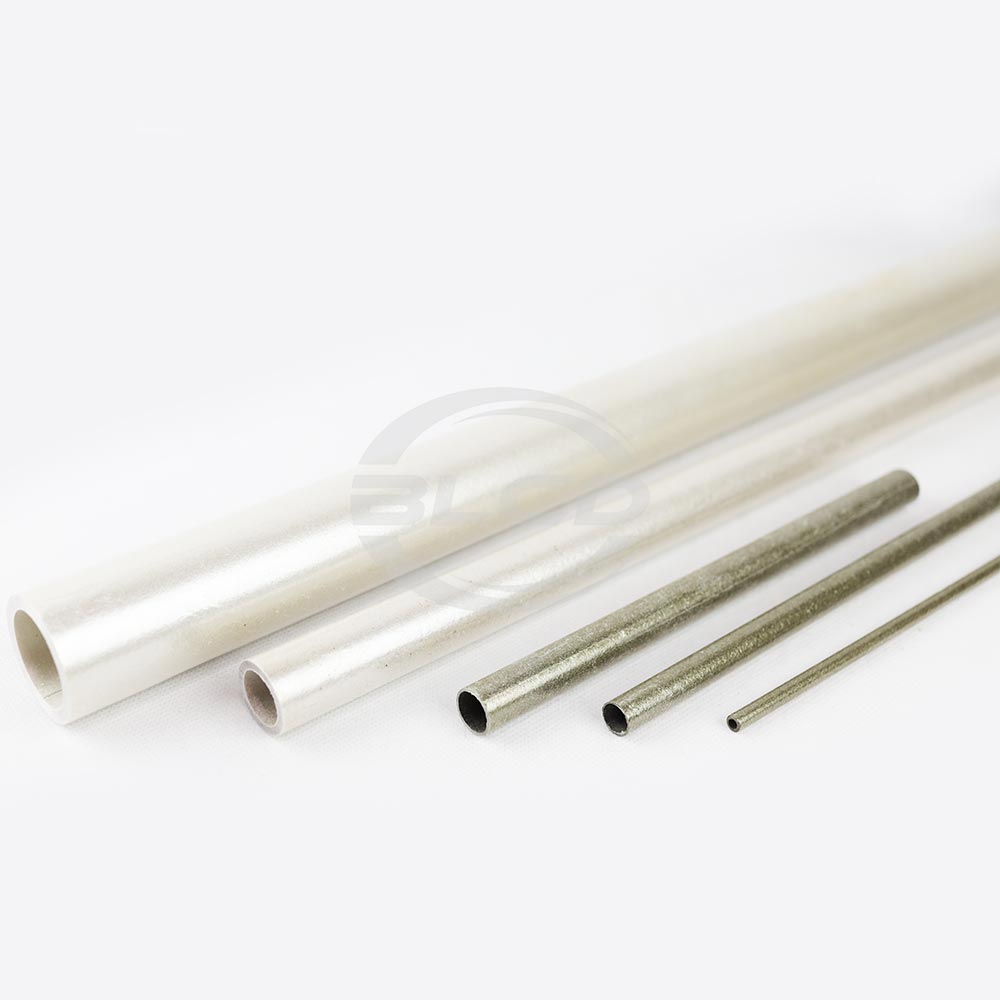

Mica tube is formed by muscovite paper or phlogopite paper fixed with silicon resin, and processed by roll form.
It has good dielectric capability and excellent mechanical strength, and often used as the insulating tube form material in all kinds of electric equipment, motors, furnaces, electric-arc furnaces, other metallurgy industry equipments.
Type
Phlogopite Mica Tube
Muscovite Mica Tube
Synthetic Mica Tube
Specification
● The lengths: 5～1000mm;
● The inner diameters: 3～300mm;
● Temperature:
Muscovite tubes with a temperature resistance of 500℃;
Phlogopite tubes with a temperature resistance of 800℃;
Synthetic Mica tubes with a temperature resistance of 1100℃.
Technical Data for Mica Tube
| Type | MICA TUBE | Test Standard | ||
| M | P | |||
| Mica content (%) | ≥90 | ≥90 | IEC60371-2 | |
| Bond content (%) | ≤10 | ≤10 | IEC60371-2 | |
| Density (g/cm3) | 1.6-1.8 | 1.6-1.8 | IEC60371-2 | |
| Heat Resistance | Continuous (℃) | 500 | 700 | / |
| Intermittent (℃) | 800 | 1000 | / | |
| Water Absorption 24h/23℃ (%) | ≤1.5 | ≤1.5 | ISO 62 | |
| Dielectric strength (kV/mm) | >20 | >20 | IEC60243 | |
Tolerance for Mica Tube
| Standard Internal Dia. | Internal Dia.(Deviation) | External Dia.(Deviation) |
| ＜10 | ±0.3 | ±0.4 |
| 10-20 | ±0.4 | ±0.5 |
| 21-50 | ±0.5 | ±0.7 |
| 51-100 | ±0.6 | ±1.0 |
| 101-200 | ±0.8 | ±1.2 |
| 201-300 | ±1.0 | ±1.5 |
Note
Mica tubes of special specifications can also be made per customers' drawings, e.g., slotting, bonding, etc. with stable quality.
Compared with the traditional ceramic tube, mica tubes has wall thickness and the ellipse easy to control, discharge even, not easy and broken, and other features, is part of the ceramic tube the ideal substitute, our company production of mica smooth surface, size small error, roundness of the gender is good, is famous for its high strength, good resistance to high temperature, by good insulation and high precision of advantages, we can according to the drawing processing of any difficulty for the customer mica tube product.
